Reach Trucks
Nichiyu build reach trucks two ways and we supply both. The PLATTER FBR-85 is stand-on; the FBRF is sit-on. Which one suits you comes down to how often your operator gets on and off.
Stand-on suits short cycles with frequent mounting and dismounting. Sit-on is kinder across a full shift. Both run Nichiyu’s SICOS control system. The FBR-85 uses AC motors at 24V or 48V with a 475–935 mm reach stroke, and the long-wheelbase variants lift to 4,000 mm. FBRF trucks can be built for cold storage: −20°C continuous, or −55°C with a heated cabin.
Typical uses
- High-bay and narrow-aisle racking
- Frequent on/off cycles — stand-on PLATTER FBR-85
- Long shifts and operator comfort — sit-on FBRF
- Cold storage from −20°C to −55°C
Reach Trucks
Nichiyu build reach trucks two ways and we supply both — stand-on PLATTER and sit-on FBRF. Which suits you comes down to how often the operator gets on and off.
Nichiyu PLATTER FBR-85
14 modelsStand-on. AC motors at 24V or 48V, 475–935 mm reach stroke, SICOS control. Best where cycles are short and the operator mounts and dismounts often.
FBR10N · FBR12N
FBR12 → FBR30
FBRA12 → FBRA30

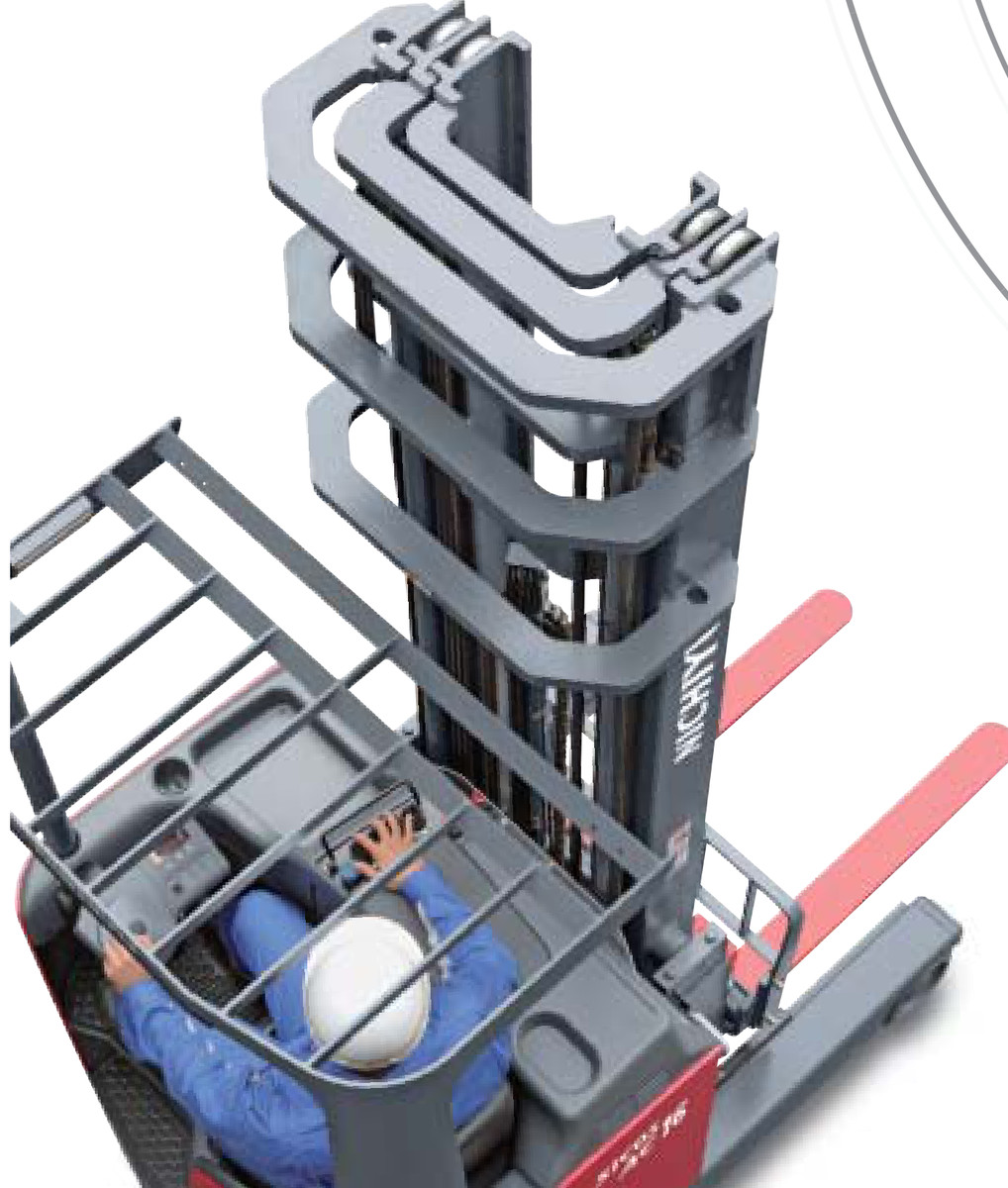

Nichiyu FBRF Series
3 modelsSit-on. Kinder across a full shift, and the range that carries the cold-store builds.
FBRF14 · FBRF16 · FBRF20
FBRF cold storage — CS & FCS
FBRF FCSZ — heated cabin
New, Used, Rental or Serviced
However you need it — buy outright, choose a cost-saving reconditioned unit, hire short- or long-term, or have us service the machine you already own.
Spec Sheet
Every model we supply, side by side. Real figures, read straight off the manufacturer’s catalogues — not estimates.
Nichiyu PLATTER FBR-85 Series
Stand-on reach truck · AC motors · 24V / 48V · 500 mm load centre · SICOS control
| Model | Type | Capacity | Lift height | Reach stroke | Mast lowered | Mast extended |
|---|---|---|---|---|---|---|
| FBR10N | N series | 1,000 kg | 3,000 mm | 475 mm | 1,995 mm | 3,900 mm |
| FBR12N | N series | 1,200 kg | 3,000 mm | 585 mm | 1,995 mm | 3,900 mm |
| FBR12 | Standard | 1,200 kg | 3,000 mm | 540 mm | 1,995 mm | 3,900 mm |
| FBR15 | Standard | 1,500 kg | 3,000 mm | 590 mm | 1,995 mm | 3,900 mm |
| FBR18 | Standard | 1,800 kg | 3,000 mm | 770 mm | 1,995 mm | 3,900 mm |
| FBR20 | Standard | 2,000 kg | 3,000 mm | 675 mm | 2,050 mm | 3,950 mm |
| FBR25 | Standard | 2,500 kg | 3,000 mm | 845 mm | 2,050 mm | 3,950 mm |
| FBR30 | Standard | 3,000 kg | 3,000 mm | 835 mm | 2,050 mm | 4,050 mm |
| FBRA12 | Long wheelbase | 1,200 kg | 4,000 mm | 600 mm | 2,495 mm | 4,900 mm |
| FBRA15 | Long wheelbase | 1,500 kg | 4,000 mm | 770 mm | 2,495 mm | 4,900 mm |
| FBRA18 | Long wheelbase | 1,800 kg | 4,000 mm | 770 mm | 2,495 mm | 4,900 mm |
| FBRA20 | Long wheelbase | 2,000 kg | 4,000 mm | 845 mm | 2,550 mm | 4,950 mm |
| FBRA25 | Long wheelbase | 2,500 kg | 4,000 mm | 870 mm | 2,550 mm | 4,950 mm |
| FBRA30 | Long wheelbase | 3,000 kg | 4,000 mm | 935 mm | 2,550 mm | 5,050 mm |
Swipe the table sideways to see every column →
Nichiyu FBRF Series
Sit-on reach truck · cold-storage classes available
| Model / class | Detail |
|---|---|
| FBRF14 / 16 / 20 | Sit-on reach truck — operator seated for long shifts |
| Cold store CS | −20°C continuous · −35°C intermittent |
| Cold store FCS | −35°C continuous · −55°C intermittent |
| Cold store FCSZ | −55°C continuous, with heated cabin |
Figures from the Nichiyu PLATTER FBR-85 Series catalogue, Specifications (p.6). The FBRF catalogue is a 5-page feature guide with no spec table.
The Machines We Actually Supply
Nichiyu PLATTER stand-on and FBRF sit-on reach trucks — tap any photo to enlarge.
